Painter

In this homework, you will practice working with Java interfaces and building user interfaces. You will refactor an existing class structure to add new features, and you will learn more about UI layout and user input handling.

Learning goals

In this exercise, we are practicing:

• Event handling: using button and mouse events to build an interactive application.
• Refactoring: changing the design of existing code without changing its functionality.
• Iterative development: building up complex software in small, testable steps, adjusting the structure of the code as we go.

In this exercise, you build up a simple paint program.

Step 0: Understand your starting point and create a class diagram

You start with the following classes:

• PainterApp: The main class of the application.
• BrushOptions: A model object that contains parameters that control a brush.
• PaintSettingsView: A UI component that allows a user to choose different BrushOptions.
• PaintUtils: Helper functions for creating an airbrush / spray paint effect.

PainterApp is the only one of the existing classes you will modify in this exercise.

You should understand the public methods and the general purpose of the other classes, but you do not need to understand how they are implemented. (You are of course welcome to read through them! But don’t get bogged down in the details. Let abstraction do its job. The point of abstraction is that you can add to or change existing code without needing to understand everything about it!)

Try running the code. You should see a user interface for choosing a color and brush size. You should also see a single fuzzy blue dot on the screen — but it just sits there and doesn’t do anything.

Diagram the class relationships

After becoming acquainted with the starter code in the assignment, think further about the class structure and relationships. Please draw a diagram showing the four classes listed above (PainterApp, BrushOptions, PaintSettingsView, and PaintUtils) with arrows between them showing the following three relationships (and only those relationships):

• has-a: one class holds a reference to another as part of its state
• is-a: one class is a subtype of another
• creates: one class creates a new instance of another

Label every arrow in your diagram with the kind of relationship it denotes. (One arrow may have multiple labels.)

Make sure your arrows point in the correct direction.

When you are done with your diagram, please upload it to the Moodle submission dropbox for the Painter Homework assignment. You can submit a photo of a paper sketch, or a digital version created with a drawing program or a slide generator. Just make sure it’s legible enough for us to read it!

Please use this name format for your file: yourlastname-hw3-sectionXX-diagram-v1.file-extension

Task 1: Draw some fuzzy dots

We have given you some starting code for the paint program’s user interface. It’s missing one crucial thing: it doesn’t paint! We have also given you some code to create fuzzy dots. By creating many of these fuzzy dots and placing them on the screen as the user drags the mouse, you will create a spray paint effect.

Open up PainterApp and look at the paint method. That method will be called repeatedly with different locations as the mouse moves. (That part already works.) Your job: make it create one fuzzy dot every time it is called, and place the dot on the canvas at location.

Here is an outline of the code you need to write to replace the TODO:

• Call the createFuzzyDot method in PaintUtils to create one dot:
  • Use the color from brushOptions
  • Use the radius from brushOptions
  • Use an alpha of 0.2f (the f means the constant is a float instead of a double)
• Set the center of the dot to location
• Add the dot to the canvas

Here are some hints to help you get started:

Don’t forget to delete the TODO comment!

Test well, make sure it works properly, then ✅ commit your work.

Interlude: Let’s plan!

Your main goal in this exercise is to support multiple brushes. You currently have a spray paint effect; you will add two more.

The code is not yet ready for multiple brushes. You will get ready for that with the following two steps. (Not yet! We are looking ahead! This is a plan, not instructions!)

1. Extract a separate Brush class from PainterApp that is responsible for nothing but placing the fuzzy dots.
2. Convert that to a SprayPaint class that implements a Brush interface, and make PainterApp depend only on the interface.

Task 2: Extract Brush class

Let’s do just step 1. Keep in mind that for now, Brush will just be a class — not an interface!

Create a new Brush class with no instance variables, and just one method named apply:

public class Brush {
    public void apply(...) {
        ...
    }
}

Add an instance variable called currentBrush to PainterApp. Initialize it with a new Brush object.

Now move some — but not all! — of the contents of the PainterApp.paint() method into Brush.apply(). Which parts should move? What parameters should apply() take? You need to figure this out. This is a lot like the Cell Absorption exercise. Guidelines:

• Any specifics about what the brush does should be in the Brush class. The main app will ask the brush to apply itself to the canvas without knowing anything specific about how the brush works.
• Any specifics about what UI components are on the screen should be in PainterApp. The brush should know it is applying itself to some canvas, but it should not know anything else about how the UI is organized.

  Recall separation of concerns: here we separate concerns about the brush behavior from handling the UI.

• Any information the brush needs to apply itself to the canvas, the apply() method should accept as a parameter. Again, Brush should have no instance variables.

Think about how to extract the class, and ask for tips if you are unsure.

Once this refactoring is done, you should still be able to paint exactly as before.

Test well, make sure it works properly, then ✅ commit your work. Be sure to commit the newly created class!

Task 3: Extract Brush interface

Remember what your goal is: take a moment to review the “Interlude: Let’s plan!” section above.

Now turn Brush into an interface with the appropriate apply(...) method, and make a new SprayPaint class that applies the spray-painting effect. SprayPaint will be the one class (so far) that implements the Brush interface.

To do this, you will need to move some existing code. What code will be new? What will move?

In PainterApp, the type of currentBrush should still be Brush, but now you initialize it with a new SprayPaint object. What is the syntax for that? Think first, try it, then check your work:

private Brush currentBrush = new SprayPaint();

Once this refactoring is done, everything should still behave exactly as before. But now we are ready for multiple kinds of brushes.

Test well, make sure it works properly, then ✅ commit your work.

Task 4: Add a new brush

You will create a new implementation of Brush that draws thin unfilled circles on the screen. Be sure to respect the brush color and brush radius.

You have all the ingredients you need to figure out how to do this. If you’d like a hint, or want to check your work, here is a sketch of the new class in pseudocode:

declaration for the `CirclesBrush` class, which implements the `Brush` interface:
  declaration for the `apply` method:
      get radius from `brushOptions`
      make a new circle with diameter of radius * 2
      set the circle's stroke color from `brushOptions`
      set the circle's stroke width to some fraction less than 1 (we want thin circles!)
      set the circle's center to the location passed as a parameter
      add the circle to the canvas

Try making PainterApp use your new brush instead of the old one. You should be able to do this by doing nothing except changing new SprayPaint() to new CirclesBrush() (or whatever you called the new brush class).

You should now see circles instead of the spray paint effect.

Test well, make sure it works properly, then ✅ commit your work.

Task 5: Add the ability to switch brushes

In PainterApp, create a new method addBrushButton(Brush brush, double y) that does the following:

• Create a Button with the title “Change Brush”. (Make sure you have theButton from kilt-graphics, and not a different Button class.)
• Position it at 10, y.
• Add it to the canvas.

• Make it so that when the user clicks it, it sets currentBrush to this brush. We haven’t yet covered in class how to make buttons clickable, so here is the Java syntax you need:

  button.onClick(() -> {
    // Put your code here to change `currentBrush` to the button’s brush
  });


Add a new instance variable called availableBrushes that is a List of Brush objects. Put one instance of each of your two brushes in the list.

In the constructor, loop over availableBrushes and call addBrushButton() for each one. (Be sure to pass different y coordinates so they aren’t all on top of each other.)

Run your code. You should see two “Change Brush” buttons. If you click one and then paint, you should see spray painting; if you click the other and then paint, you should see circles. Polymorphism unleashed!

Test well, make sure it works properly, then ✅ commit your work.

Task 6: Add an eraser

Make a new implementation of Brush called Eraser.

Eraser should do the following:

• Call canvas.getElementAt() to get the graphics object at the given position.
• If that method did not return null, call canvas.remove() with the object you found.

This should take just a little bit of code.

Add Eraser to the end of availableBrushes, and try it out! You should be able to paint something, then switch to the eraser by clicking the appropriate button and erase parts of what you painted. Yay!

But wait…. Try dragging the eraser over the “Change Brush” buttons on the left of the screen. Oops.

That’s OK. This is progress! ✅ Commit your work, and then you can fix the bug.

Task 7: Fix the eraser

The problem is that when you call getElementAt(), you remove any element you find — including the buttons!

One solution would be to try to look at the matched element and figure out whether it is part of the painting or part of the controls. But that would be a brittle change: we want to be able to add new kinds of controls and new kinds of brushes, without constantly having to worry about making sure the eraser correctly identifies which is which.

A better solution is to put the entire painting inside a GraphicsGroup. That group will contain only the painting and not the whole UI, so we can safely remove anything from it.

In PainterApp, add a new GraphicsGroup instance variable called paintLayer. In the constructor, initialize it and add it to the canvas:

paintLayer = new GraphicsGroup();
canvas.add(paintLayer);

Now find the call to currentBrush.apply(), and change the canvas parameter to paintLayer.

Oops! This breaks! Why? Because CanvasWindow is not a GraphicsGroup. That means you need to change the Brush interface — and all the classes that implement it — so they take a GraphicsGroup instead of a canvas.

Once you have made that change, all the brushes will work entirely within paintLayer. You should still be able to paint and erase as before, but the eraser should no longer remove any buttons. (And as a side bonus, you can no longer paint over the color preview square in the upper left! Did you notice that bug? It’s fixed now too.)

Test well, make sure it works properly, then ✅ commit your work.

Task 8: Give the brushes names

You’re almost there! In this last step, you get a good feel for what iterative development really feels like in practice.

It’s annoying that all the buttons have the same name, isn’t it? Let’s give the different buttons different names.

Add a getName() method to the Brush interface.

Make each class that implements Brush implement that method by returning a different user-friendly string. (By “user friendly,” I mean that for example you should return "Spray Paint" with a space in it, so it sounds like something that is meaningful to a user/artist, not meaningful to a programmer.)

When you call the Button constructor, instead of passing "Change Brush", pass the brush’s name.

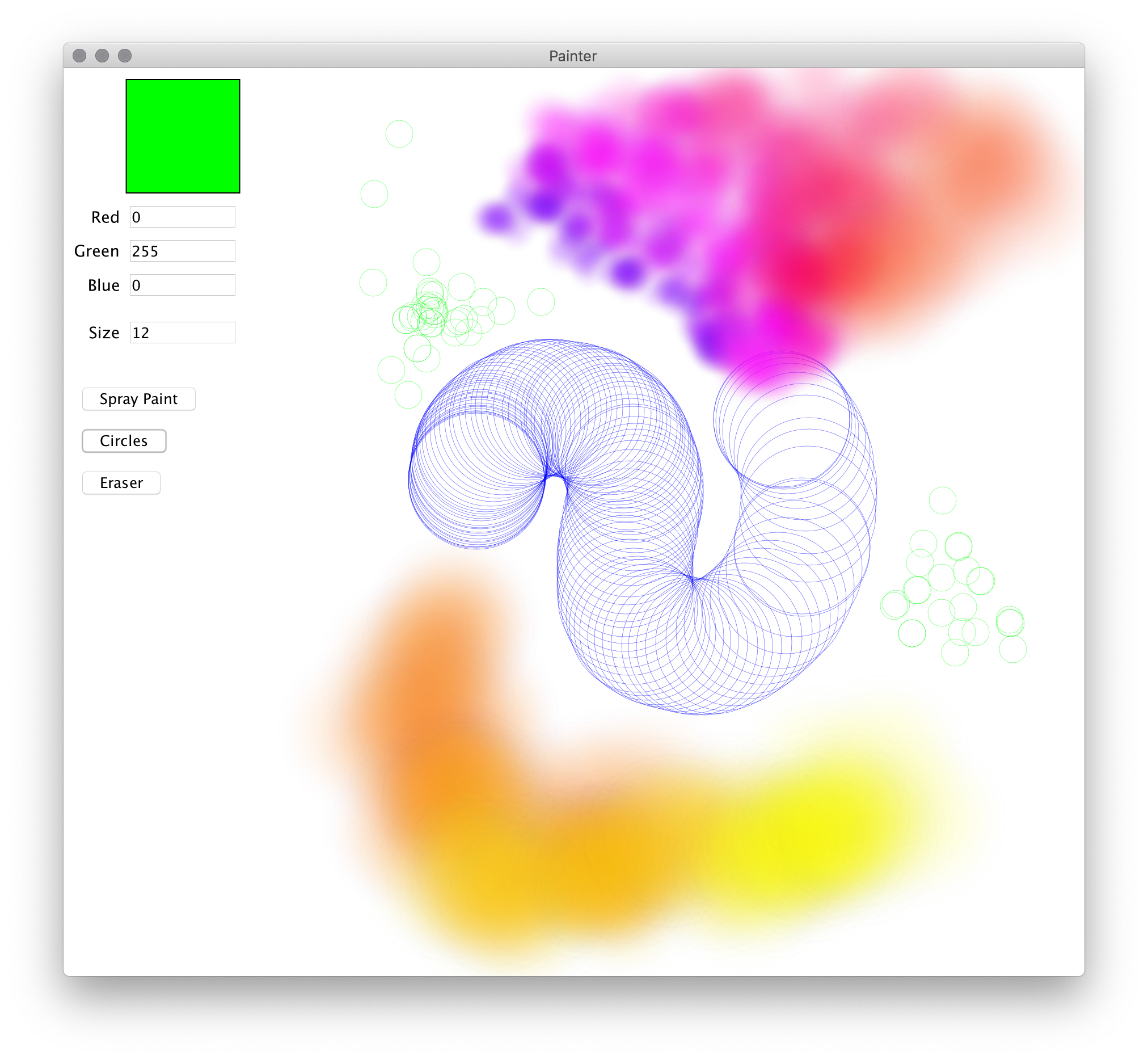

Run the program. You should now have a UI with three buttons with different names.

Test well, make sure it works properly, then ✅ commit your work.

Task 9: Be creative! Make additional brushes!

You know you want to, right? Of course you do. Be inventive! Have fun!

Rules for full credit:

• You must create at least one new brush. (We’d be delighted if you create more!)
• Your new creation cannot just be a minor modification of an existing brush. For example, merely making a SquareBrush that is just like CircleBursh except with a rectangle will not receive full credit.

Not sure where to start, or what’s enough? Here are a few ideas:

• A brush that stamps an image on the canvas
• A brush that draws a cool shape of your own invention
• A brush that draws a continuously rotating shape
• A brush that draws spikes coming out from the mouse in random directions
• A brush that makes a splatter pattern by drawing dots of random size offset from the mouse’s location by a random distance

Try one of those ideas, or invent your own!

As usual, test well, make sure it works properly, and enjoy your excellent work by creating some MORE AWESOME art! Then ✅ commit and push.

Task 10: Revisiting your class diagram!

Remember wayyyyyy at the beginning of this assignment, you were asked to create an initial diagram of the class structure and its relationships? Well, your final task (woohoo!) will be to draw an updated diagram with the new class structure and relationships.

Draw a diagram in the same style as the first one, now showing all of the classes and interfaces in the painter package.

Again, upload your second diagram via Moodle submission dropbox for the Painter Homework assignment.

To distinguish your prior diagram and your updated one, use a similar naming convention (where now we use v2 for version 2): yourlastname-hw3-sectionXX-diagram-v2.file-extension

Now, you should have two diagram file submissions on Moodle, along with your code pushed to GitHub. If you have done all these things, CONGRATULATIONS!
