Weather Display

Assigned:
Wed, Oct 15
Due:
Mon, Oct 27

In this exercise, you will create an app that shows weather information. The program will use real weather data from OpenWeather. We have created code to handle getting the data from OpenWeather, and have given you a start on the user interface (UI). You will complete the UI.

When you are done, your results might look something like this, with the bonus option to invent your own weather widgets:

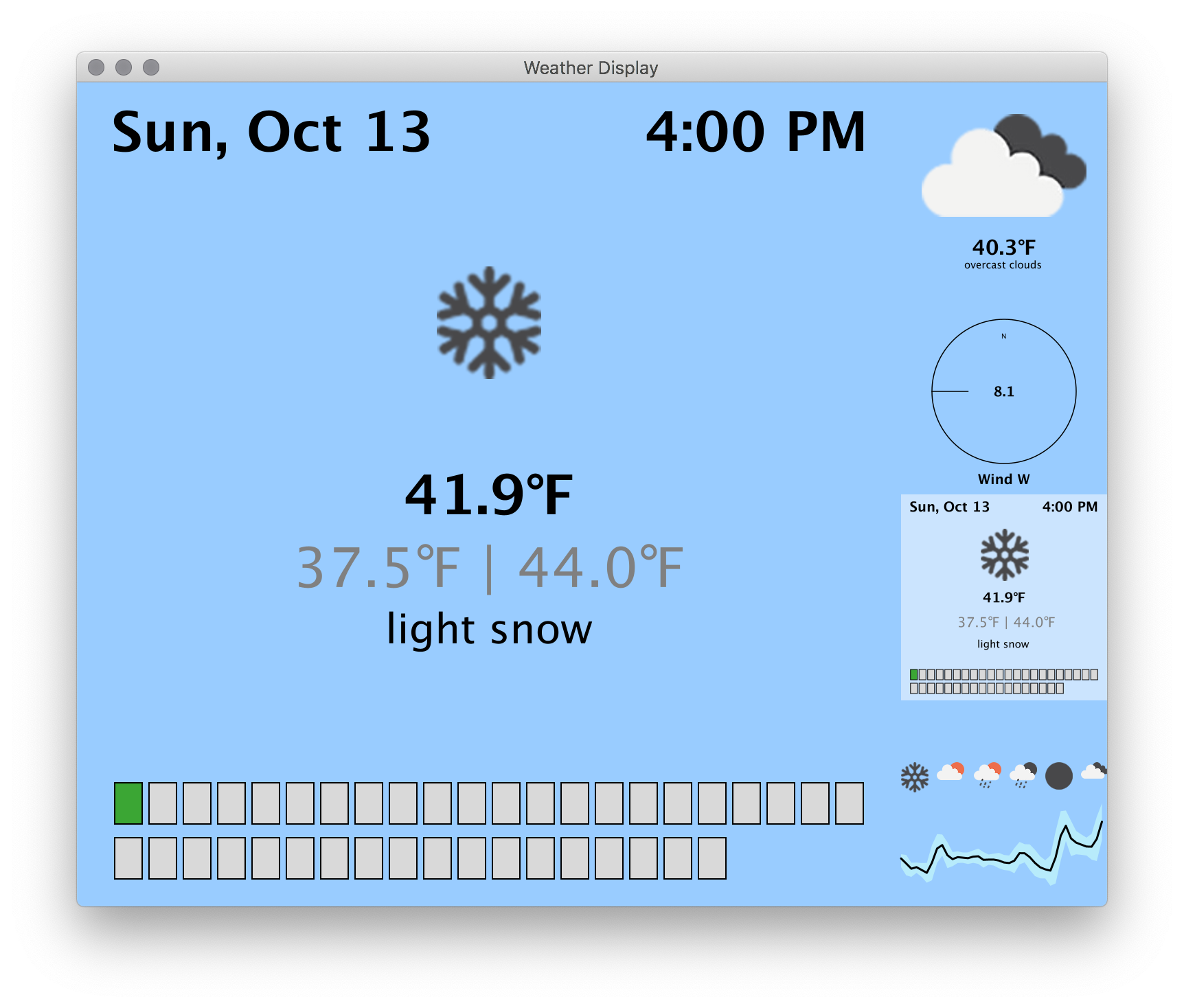

Completed user interface with 4 widgets

Learning Goals

This assignment focuses on graphics, object modeling, polymorphism, and testing. Its goals include:

  • Writing code that works with real, live data
    • Formatting data as text
    • Working with null values
  • Implementing a graphical user interface
    • Doing coordinate math
    • Using groups of elements
  • Working with inheritance
    • Overriding methods
    • Using methods inherited from a superclass

Attributions

We have used the owmjapis and org.json packages (both of which are open source) to make it easier for you to use OpenWeather data. You do not need to know how these packages work, but if you would like more information about them, see this OWN JAPIs repository and the Java JSON parser package.

The original version of this activity was by Bret Jackson, with heavy contributions from Daniel Kluver and Paul Cantrell.

Do this one part early, as soon as this exercise is assigned.

You will first need to get your own OpenWeather API key, so you can use their web API to get weather data. Do this by signing up for a free account at https://openweathermap.org/appid.

What is a web API? In general, an “application programming interface,” or “API” for short, is a set of rules and promises that one piece of code makes about what it will do, and how other pieces of code can communicate with it. You are already used to using library APIs, such as List and CanvasWindow, that let code communicate with other code in the same process or application, and on the same computer.

However, code can also communicate with other code on other computers, and even across the Internet. We call that a “remote API,” or if it specifically uses web technology such as HTTP, a “web API.” (In less-technical business circles, when people say “API,” they usually mean “web API.”)

What is an API key? OpenWeather provides this API for free, so that people can build apps and do research. The API key lets them know who is requesting data. This lets them have some paid features, and lets them shut down a particular account if it is abusing the system (e.g. by making too many requests).

Once you’ve completed the sign-up process and confirmed your email address, there are two places you can find your API key:

  • You should receive an email from OpenWeather with your API key after confirming your email, or…
  • you can find it in My API Keys on the OpenWeather site.

Your API key will be a random sequence of 32 numbers and letters.

Inside res/, create a new file named weather-display.properties. Make sure you have the correct location!️ In VS Code’s UI, it is easy to accidentally create the file inside of res/condition-icons/. Make sure you create the file just inside of res/.

Put this one line in the newly created file:

api.key=???????

…where ??????? is your API key.

Run WeatherProgram to test your API key. NOTE: If you get an error message that your API key is invalid, add a newline character at the end of your api key. If it works, you will see a weather display that is not very pretty, but has the real-life current weather conditions for Macalester:

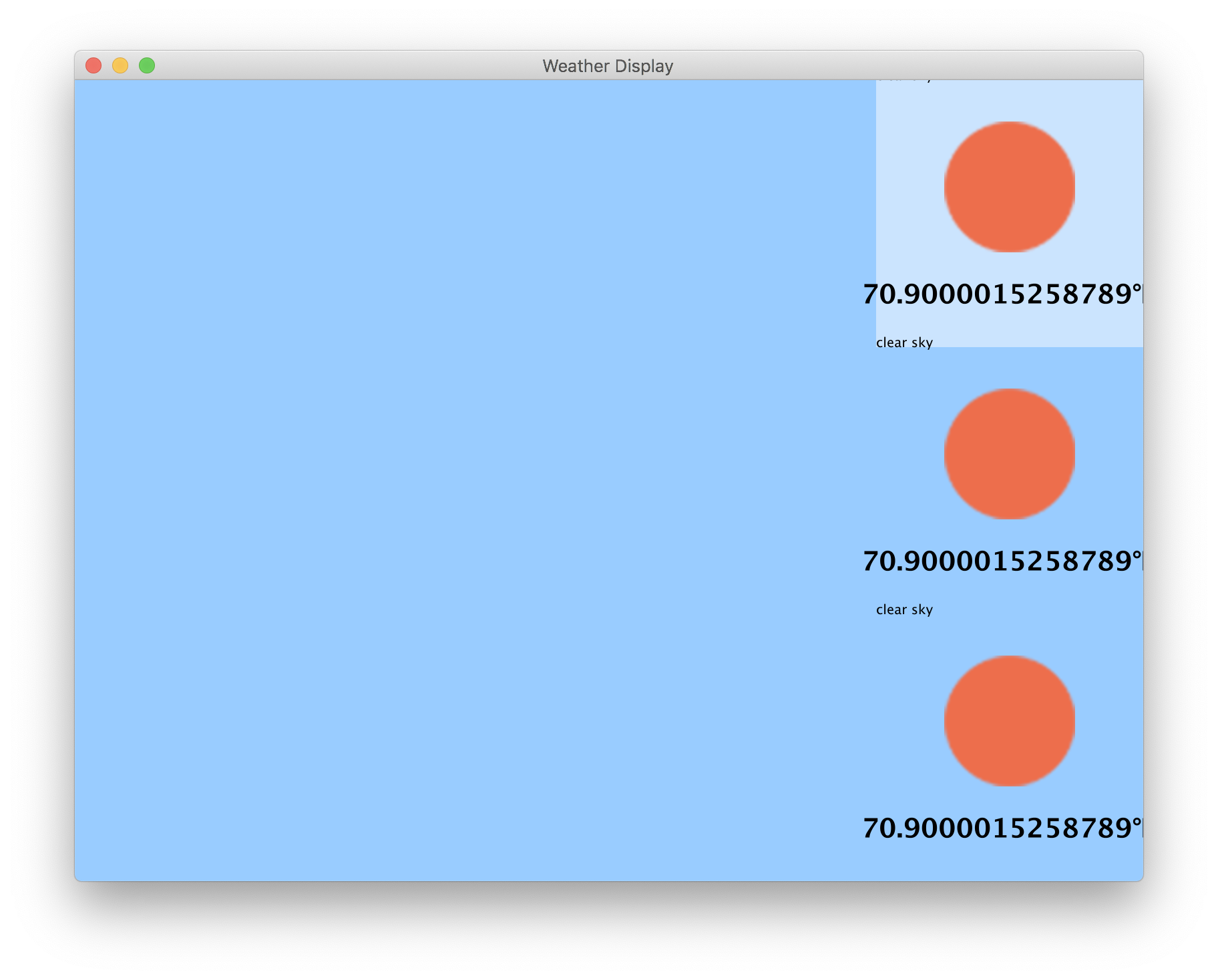

Initial UI state

Data model

In the comp127.weather.api package, look at these classes:

  • WeatherData
  • Conditions
  • CurrentConditions
  • ForecastConditions

Study the relationships between these classes. (How are they connected? What are the has-a and is-a relationships between them? What is the role of each class? It might be wise to diagram this.)

These classes have some tricky code in them, including some Java features we have not studied in class. But don’t worry! You only need to use these classes, not modify them or understand how they work. That means that you can just pay attention to the public method signatures and their accompanying Javadoc. For example, in WeatherData, the signature of the first public member is:

public String getCityName()

These public methods are what you will use to get data for your weather UI. Note that these classes provide just the data; none of them say anything about how the data will be displayed. These “no view, just data” classes are called a data model. You will need to be familiar with the data model to build your UI.

User interface

Look inside the comp127.weather.widgets package. There is an interface called WeatherWidget, plus a start on two specific widgets that implement it. You will complete those two widgets, and optionally add some of your own. Study WeatherWidget and understand the methods that each widget must implement.

There are also a few classes in that package that will help you implement widgets. Take a look at them, and understand what they offer you.

In the comp127.weather package, take a look at WeatherProgram. This is the full UI that is going to display your widgets. You can run it now if you want! It will fetch real weather data for St. Paul. However, it currently just shows the same widget several times, and does not yet show an enlarged version of the selected widget as it is supposed to.

If you see nothing but question marks, that means either you have not put your API key in the correct place, or your key is not active yet. Even if your API key is not active yet, however, you can still proceed with the assignment, because of the…

Testing strategy

In the test directory, in the comp127.weather.widgets package, run SingleWidgetTest. This class is designed to help you test new widgets as you develop them. Right now, it is set up to test TemperatureWidget, but you will eventually use it to test others too.

Note that this isn’t a JUnit test class! There won’t be any icons on the left side that run unit testing cases. Just run this class as usual: from the Run and Debug pane, with F5, clicking the arrow in the upper right, or similar.

Much like WeatherProgram, this class displays widgets on a canvas. However, there are two important differences:

  • It shows just one widget at many different sizes. This is to make sure the widget scales itself properly, so that it looks good whether it is large or small.
  • It uses fake data generated for testing. Why use fake data?
    • The fake data is designed to exercise a wide range of possible conditions, including edge cases such as missing data and extreme values.
    • The fake data does not use the network, so your tests run faster (and don’t unnecessarily pummel the OpenWeather servers).
    • The fake data it uses is stable, i.e. the same every time. This means that if you catch a bug, you can retest your widget with the same data to make sure you fixed it. A stable, repeatable test environment like this is called a test fixture. (You can see how the fake data is generated in WeatherDataFixtures. In this project it is arbitrarily generated, but fixture data is often hand-designed or captured from real data.)

When SingleWidgetTest runs, you should see a blank screen. This is how the widget will look before it gets any data from OpenWeather, i.e. while it is loading.

Click anywhere. You will now see how the widget looks when the server responds with everything blank that is allowed to be blank.

Click again. You will see a variety of different weather conditions.

Do you notice that TemperatureWidget doesn’t look quite right?

We want TemperatureWidget to look something like this:

Temperature widget working in various states

…but right now, it looks like this:

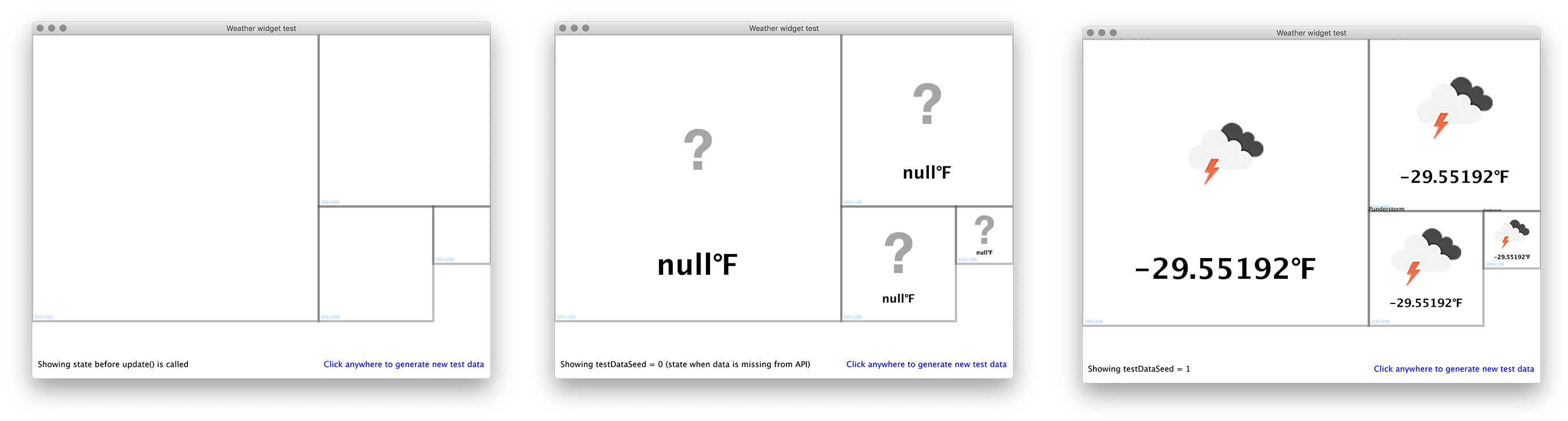

Temperature widget showing bugs in various states

There are several problems:

  • It does not handle null temperatures well. (User interfaces shouldn’t show the word “null.”)
  • It shows the temperature to a ridiculous number of decimal places.
  • The textual description of the weather condition is stuck almost entirely outside the box in the upper left.

Your first task: fix these problems to make TemperatureWidget work properly.

Here are some hints:

  • Look for the TODO comments in the code.
  • Note that many of the numbers in the data model have the type Double with a capital D, which (unlike double) allows the value null (meaning “no data available”).
  • There are some helpful tools in FormattingHelpers. You can use those formatter objects by calling their format methods, like this: FormattingHelpers.ONE_DECIMAL_PLACE.format(someNumber). However, those formatters will not handle null values correctly. Before formatting the temperature, you will need to check for null using a conditional.
  • You will need to do null checks a lot, so consider adding a new static method to FormattingHelpers that first checks for null, then uses ONE_DECIMAL_PLACE if a value is present, and return "-" if the value is null. (You could even make ONE_DECIMAL_PLACE private so you don’t accidentally use it from your widgets, and have to use your null-safe helper instead.)

Use SingleWidgetTest to make sure the widget works with a wide variety of input data.

Make the ForecastWidget look like this:

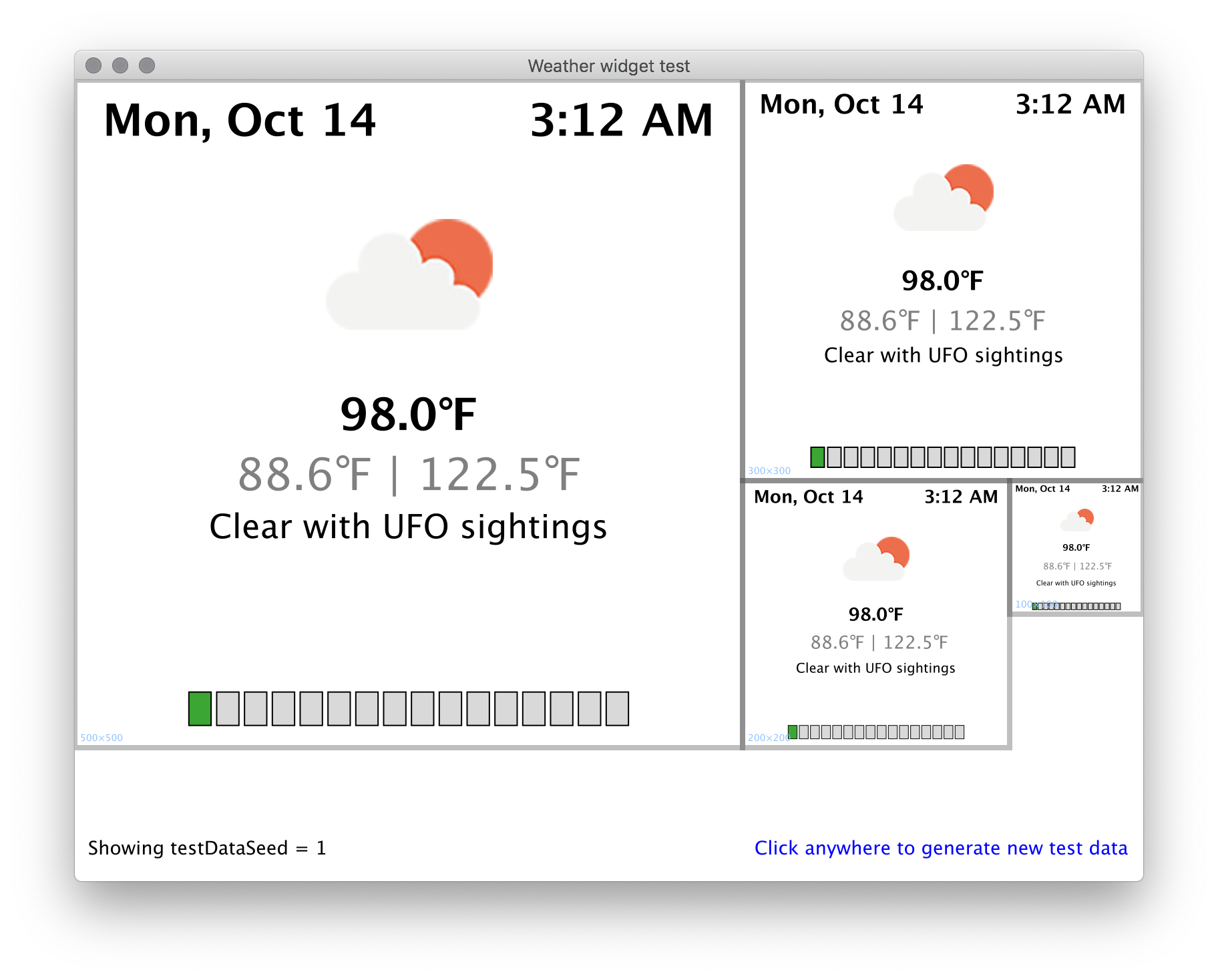

Forecast widget working

The boxes at the bottom represent a timeline of future forecasts. When the mouse moves over the boxes, it should change the forecast shown above.

The code contains some scaffolding and many hints. Think, plan, sketch on paper, and take it one step at a time.

Change SingleWidgetTest to test ForecastWidget. Test it thoroughly! There is a lot going on here, which means there are many possible bugs.

You’ve been using the test code so long, it may be easy to forget the goal is to build a real app!

Go back to WeatherProgram, and find the createWidgets() method. This method gets called twice: once to make small widgets to run down the right hand side of the screen, and once to make large widgets to show one at a time on the left.

The layout logic for these widgets is all done, but you never see the enlarged widgets because selectWidgetAtIndex() is not implemented yet. Implement it according to the hints in the code.

If you want more practice working with graphics and user interfaces, or are just feeling especially creative:

Using the general structure of TemperatureWidget and ForecastWidget as a guide, invent your own weather widget. You might use the widgets in the screenshot at the very top of this document for inspiration. You might also be inspired looking through what is available to you in WeatherData and its related classes.

To test your new widget, change SingleWidgetTest to run it instead of the temperature widget.

To learn about what kinds of graphics you can create, take a look at the Comp 127 kilt-graphics javadoc.

Add your new widget to WeatherProgram to see it in action!

As always, make sure to follow the Comp 127 Java Style Guide.

The self-evaluation rubric for this assignment is in SELF_EVALUATION.md.

See the Take-Home Exercise Procedure for full instructions.
