Unit Testing

Learning goals

• Practice writing unit tests and working with JUnit
• Use the “test-driven development” approach
• Learn about the limitations of unit testing
• Practice working with lists

Background for this activity

Throughout this activity you will create several separate units of code that simultaneously:

1. can be tested in isolation by unit tests, and
2. can be used as a building block of a large project or application.

In this particular activity, the units of code you’ll be creating are static methods.

Static methods

“Static method?” What exactly the “static” part means will make more sense in a few weeks. For now, just know that a static method in Java is a kind of function. Suppose you have this code:

public class TextGeneration {
    public static String makeNonsenseWord(int letters) {
        ...
    }
}

…then:

• If you are inside of TextGeneration, you can call the static method just like you would call a function in Python:

  makeNonsenseWord(12)


• If you are in a different class somewhere else in the project, you call the static method by first specifying which class it is inside, like this:

  TextGeneration.makeNonsenseWord(12)


What’s a “class?” We’ll be learning a lot more about that throughout this course. For now, just know that a class is a sort of container that holds many related pieces of code.

Have you been wondering what public means? Now you have the context to know: it means “can only be used inside this class.” If makeNonsenseWord were private instead, then that second call from another file would be illegal.

Unit tests and JUnit

Think about the string activity. Remember how you had to manually inspect output in the terminal to make sure that the actual output matched the expected result?

In full-scale software projects, it is common for automated tests to contain thousands of “expected vs. actual” comparisons like this. Can you imagine manually inspecting test output on a project like that?!

Fortunately, we have tools to help us check the results of our automated tests. In this class, we’ll be using a widely used tool called JUnit. JUnit gives us a way to write code that compares many, many, many expected results against actual values returned by our code, then get a concise report about which tests passed and which ones didn’t. That’s the big idea! We’ll learn the details by example as we go.

Task 1: Odd / even helper

Open the file named OddEvenHelper.java in the src/testingbasics folder. Study the isEven() and isOdd() methods.

Perform manual testing

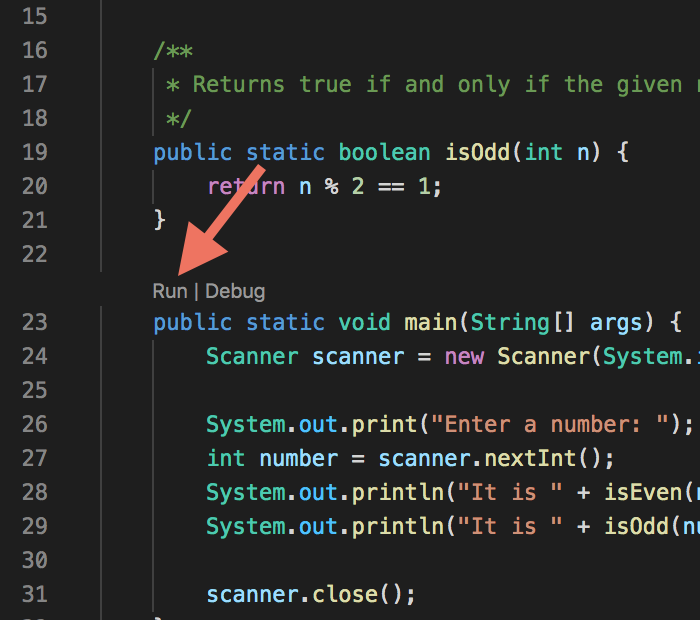

Now study the main() method. What is it going to do? Just above the main method, VS Code shows “Run” and “Debug” links. Click Run and try it out:

(There is a bug in the code. If you happen to find it, don’t fix it…yet!)

Add code to main() (Don’t delete any existing code!! Add new code!) that prints “Wow, that’s odd!” if the number is odd, but does nothing if it is even. Run your main method again to try your new code.

Run the automated tests with JUnit

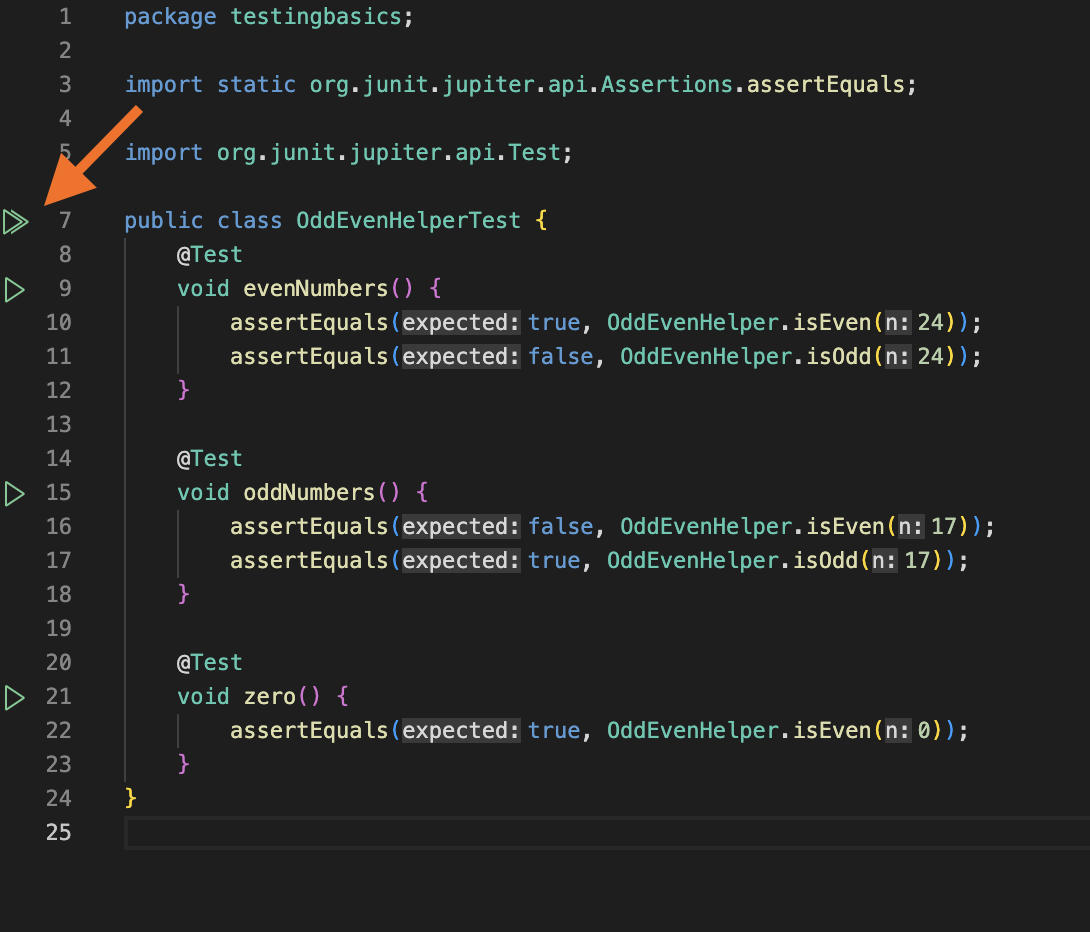

Open the file named OddEvenHelperTest.java in the test/testingbasics folder. Study these tests. Can you figure out the intention of this code? How is this code organized? What do you think assertEquals does?

Notice that VS Code shows several little green triangles throughout this file: That is VS Code’s “Run” icon. You can choose to run just one individual test — but you want to run all of them! Click the double triangle that appears to the left of the first line of the whole class:

When you click that icon, several things will happen: Java takes a moment to run the tests. Then, after they’ve run, the Run icons change to green checkmarks: one next to each individual test, plus one at the top of the class to show that all tests inside the class passed. You can rerun those tests by clicking the green checkmarks.

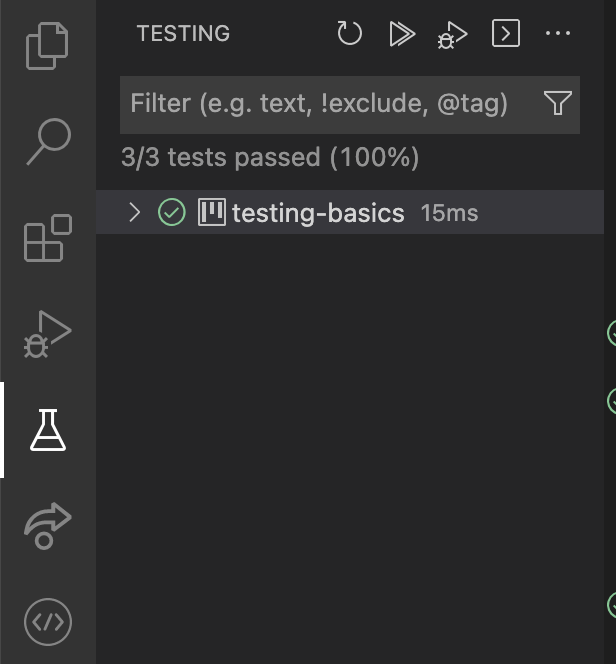

You’ll also notice that the panel on the left has changed. Instead of showing all the files in the project, it now shows tests:

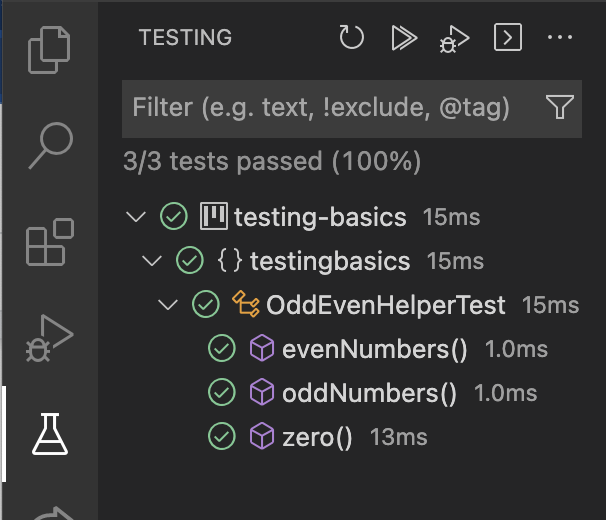

Note “3/3 tests passed.” Which 3? You can click on that testing-basics line, expanding down a few levels to get more details:

To get back to viewing all the files in your project, click the Explorer icon in the upper left of the window:

And to see the tests again, click the Testing icon a little ways beneath it:

Add a JUnit test

Did you notice that the unit test method zero() only tests isEven()? Add a line to test isOdd() too.

Run the tests again to make sure your new test passes.

Fix a bug using test-driven development

All the tests pass. Does that mean the software is completely correct? You don’t know! Automated tests like these can only test what they were looking for — and they weren’t looking in one very important place.

There is a bug in OddEvenHelper.

Go back to OddEvenHelper (not the test class) and run its main method. Run manual tests with some negative numbers. See if you can find the bug, but when you do…

We are going to use a technique called test-driven development, or TDD for short. If you want to make any change whatsoever in your applications functionality — adding a feature, fixing a bug, anything! — then TDD says:

1. Run all the tests to make sure they pass. Don’t skip this step! Your teammates might have left the tests broken by accident. You want to catch this right away, or it will be confusing!
2. Write a test that fails because you haven’t implemented your change yet.
3. Run your new test to make sure it fails. Don’t skip this step! It’s easy to forget. It ensures that you’re testing what you think you’re testing.
4. Now make the simplest change to your application code that makes the test pass.
5. Run all the tests to make sure they all pass now.
6. Go back to step 2 until you’re done with your work.
7. Clean up. Don’t skip this step! “Working” is not enough. A good programmer thinks about others: is this code readable? clear? sensible? Now that I’ve finished it, could I use clearer names for things? Did I leave any pieces dangling?

TDD developers sometimes refer to this as the “red-green-refactor” cycle: make the tests break, then make them succeed again, then clean up.

Try this technique to fix the bug you found. Whoever is navigating, strictly hold your driver to the rules above! What is a test that would expose the bug? Add that test. Make sure it fails.

Then fix the bug. This might be tricky! Here are two hints:

• The solution is very, very simple. That doesn’t mean easy! Simple ≠ easy. But it is simple: once you have figured it out, you only need to change a few characters in the code. If you find yourself making the isOdd() method more than one line long, you are making it too complicated. Look for a simpler solution.
• To figure out how to fix it, you may find it helpful to put a print statement inside the isOdd() method and see what the % operator does. If you do, remember to remove the print statement when you’re done!

Once you think you have the bug fixed, make sure all the tests pass.

When you finish this task, this is a good place to commit your work.

Optional side note: the logical framework for the scientific method and unit testing

There’s a deep connection between the philosophy and limitations of unit testing and the scientific method as we understand it today. It goes back to Karl Popper and the idea of falsification.

Popper’s idea is this: if you have some scientific hypothesis, theory, or explanation, and you perform experiments or observations of the natural world, you cannot prove that hypothesis to be true. But you can prove that it is false; that is, you can falsify a claim.

Why? Well, you can’t check everything. There are always going to be some observations that you can’t make — say you’ve measured the speed of light many times, and always get exactly the same value. But perhaps in the past the same observation would have given a different speed of light! Or maybe the speed of light is different in just one town in Ohio where you’ve never been! You can’t measure the speed of every ray of light in the universe since forever, so you can’t know there isn’t some exception.

On the other hand, you can make an observation of the speed of light and falsify your claim about its speed. Maybe you have claimed the speed of light is always 299792458 meters per second — and then you measure its speed in water and discover that it is slower. Oh no! That one observation (assuming it was correct) proved your theory false: It is not true that “the speed of light is always 299792458 meters per second” after all.

Popper’s insight is that in science: theories can never be proved correct, only proved wrong. Theories can be confirmed — but all that “confirmed” means is “we’ve tried to prove it wrong, but haven’t managed to yet.” Science can give us confidence, but not certainty. Proof is the stuff of mathematics.

Unit testing and what it tells you about software matches scientific experiments and what they say about the world. Unit tests can falsify a claim like “this function works as documented” or “this code does not crash”, but usually they can’t prove that the function or code does always work as intended.¹ Units tests can give us confidence, but not certainty.

Keep this in mind when writing tests. If all your tests pass, that does not prove that your code is correct! But if a test fails, then you do definitively know that either (1) your code has a bug, or (2) your test is wrong. Or, perhaps (3) there’s something wrong with Java itself, or Visual Studio, or maybe an errant cosmic ray hit your computer’s memory and flipped a bit.²

Task 2: Typo fixer

You often mkae typose when you type and would like to write a program that can help fix those automatically for you. You could just learn how to type more accurately and be more careful, but where’s the fun in that?

Take a look at the TypoFixer class, which contains a fixTypos method. The TypoFixer class is written so that it fixes three typos – “studnents”, “Macaleseter”, and “teh” for words starting with “the”³.

Study how this method works. There is a bug lurking somewhere in that code (spoiler!), but don’t change anything yet. Just read the code. Some things to think about:

• What are the parameters of this function: how many, and what type?
• What is the type of the return value?
• Given that the parameter is a single String, how does the code operate on just one word at a time? (Hint: The key is the split method. You can look up the documentation for that, but in this case the documentation is hard to make sense of. Instead, study the code and think about what split must do in order for the whole thing to work.)
• How does the method build up its return value? (Hint: Look at the output variable and think of the reading assignment.)
• Since output is a List, how does the method manage to return a String? (Hint: What does the String.join() method do? The documentation for that one isn’t quite as bad.)

Would this code successfully correct the typos it is supposed to correct? We are learning how to do test-driven development, so instead of running this code and manually inspecting some output, let’s interrogate the correctness of our code with automated tests.

Go to TypoFixerTest. Read the tests. Do they make sense? Are they sufficient?

Run the tests. They pass (unless your VS Code Java environment is broken, which does happen annoyingly often), so we have reason to believe that the code is working as intended.

Add a new word

If we can fix those three typos, let’s fix more: since this is a computer science (CS) course, you find yourself frequently typing “CS”. And let’s say you would like to not need to use the shift key when typing “CS”. Since “cs” isn’t otherwise an English word, you decide you’d like your code to change “cs” into “CS”.

• Don’t modify TypoFixer yet! Instead, use the above specification (“cs” should get transformed into “CS”) to write a new test. Run the test. It fails, of course. (Quick quiz: if you are very confident you wrote the test correctly, is it OK to skip the part where you run it and make sure it fails? NO!)
• Now let’s modify TypoFixer. Modify the end of the if-else chain suitably to look for that typo and fix it.
• Run your test again. Does it fail? If it does, keep working until all the tests pass.

Fix a bug

Copy and paste this sentence into a new text case:

There are no typos here!  Everything is correct.

Do no retype it! Be sure to copy and paste that text so you get it exactly as it appears in these instructions, every character.

You should see an error like this:

java.lang.StringIndexOutOfBoundsException: begin 0, end 3, length 2
 at java.base/java.lang.String.checkBoundsBeginEnd(String.java:4606)
 at java.base/java.lang.String.substring(String.java:2709)
 at testingbasics.TypoFixer.fixTypos(TypoFixer.java:20)
 at testingbasics.TypoFixerTest.fixStudnets2(TypoFixerTest.java:31)
 at java.base/java.util.ArrayList.forEach(ArrayList.java:1511)
 at java.base/java.util.ArrayList.forEach(ArrayList.java:1511)

That’s a lot to look at, isn’t it? Don’t panic! There are two pieces of useful information buried in all that:

• The error message on the first line is “Range [0, 3) out of bounds for length 2”. So there’s something about…a range, the numbers 0 and 3, and bounds. These are important clues!

• That’s what the error was. The long chain of lines that start with “at” describe where the error occurred. This is called a stack trace.

• The first stack trace line that mentions our code (instead of the inner workings of Java itself) is this one:

  testingbasics.TypoFixer.fixTypos(TypoFixer.java:20)


  That tells us that the occurred on line 20 of the file TypoFixer.java. (The line number may be different for you, depending on how you modified this file to add the “cs” case.)

This is good! We know that some code on line 20 produced that error message. Take a look at the code. What went wrong? Take a look at the relevant JavaDocs for the offending method and make sure you see why it failed.

Now, find a different method that will work better, not crash, but which works for this situation.(Hint: There is a helpful method that gives you a very simple fix for this problem, but it may not be easy to find! Remember, spending a lot of thoughtful time to make your code small and simple is generally a good thing.)

Remember, the response to the question “does it work now?” is always: (1) Run the tests! (2) Ask what the tests might not cover.

Things to consider

If you would like more of a challenge, either in class or at home, here are some interesting questions about this code and things to try.

1. Your code likely still has some bugs! Try this test case: Studnets love Macaleseter!. What should the output be? Write a test for that and run it. What happens? Try to fix the bug.

2. Your code now fixes a pre-determined collection of typos. Adding more typos to fix is rather tedious, isn’t it? What if someone else wants to use this code, but they make different typos?

   Try changing fixTypos so that in addition to a string to be fixed, it also accepts two lists of strings: the first contains typos, and the second, in corresponding indices, contains the corrections. Now when you call fixTypos you specify those typos and their corrections. Modify your tests so that they call fixTypos with the original set of typos and keep working on your code until the tests pass. Now make a test for a completely new typo and make sure that passes too.
